Woven Fabric Cutting Machine With Gusset


Features

  • Achieving ±1mm cutting length
  • Printing mark reading sensor
  • Bag mouth auto opening device
  • Servo Motor & PLC based electrical control panel
  • Hot & Cold combo type cutters

Optional

  • Online Cold Perforation Station
  • D&C Type - Cold Cut Station
  • C Type - Hot Cut Station

TECHNICAL SPECIFICATIONS

Model Type Speed Width Gusset Depth Connected Load Dimension (L x W x H)

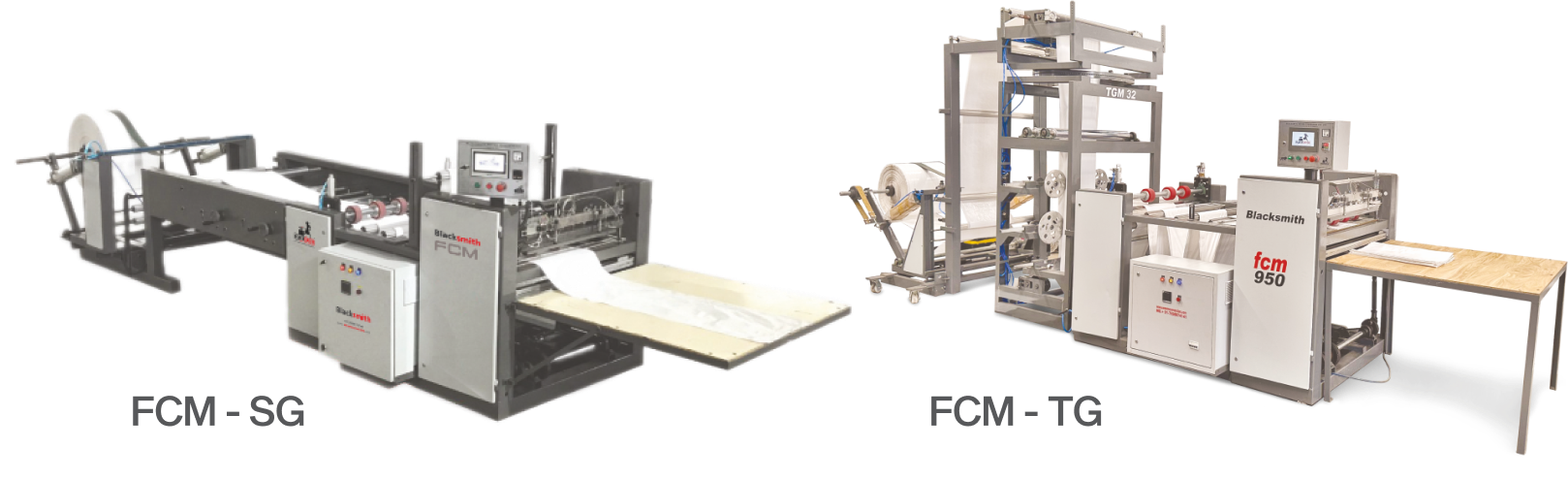

FCM TG 32” Hot Cut 45 Meters / Min* 32” 1” to 4” Each Side 9 Kw 17 x 10 x 5 (Ft.)
FCM SG 32” Cold Cut Min* 32” 1” to 3” Each Side 8 Kw 18 x 5 x 5 (Ft.)

(*Depends upon the GSM, Length & Material of the Substrate)
