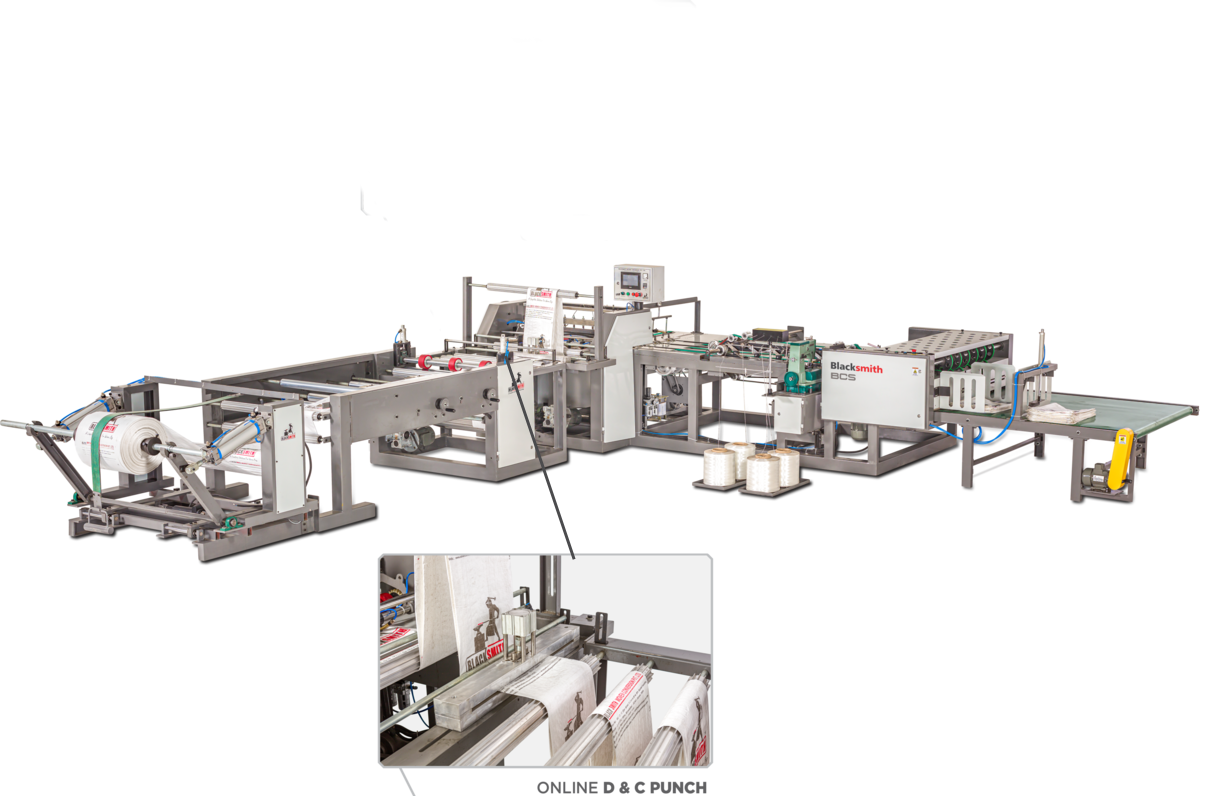

Woven Fabric Cutting & Stitching Machine With Online Straight Gusset Device


TECHNICAL SPECIFICATIONS

Model FCM TG 32” FCM SG 32”
Type Hot Cut & Cold Cut Hot Cut & Cold Cut
Speed 45 Meters / Min* 45 Meters / Min*
Width 12” to 32” 12” to 32”
Gusset Depth 1” to 4” Each Side 1” to 3” Each Side
Connected Load 9 Kw 8 Kw
Dimension (LWH) 17 x 10 x 5 (Ft.) 18 x 5 x 5 (Ft.)
(*Depends upon the GSM, Length & Material of the Substrate)
