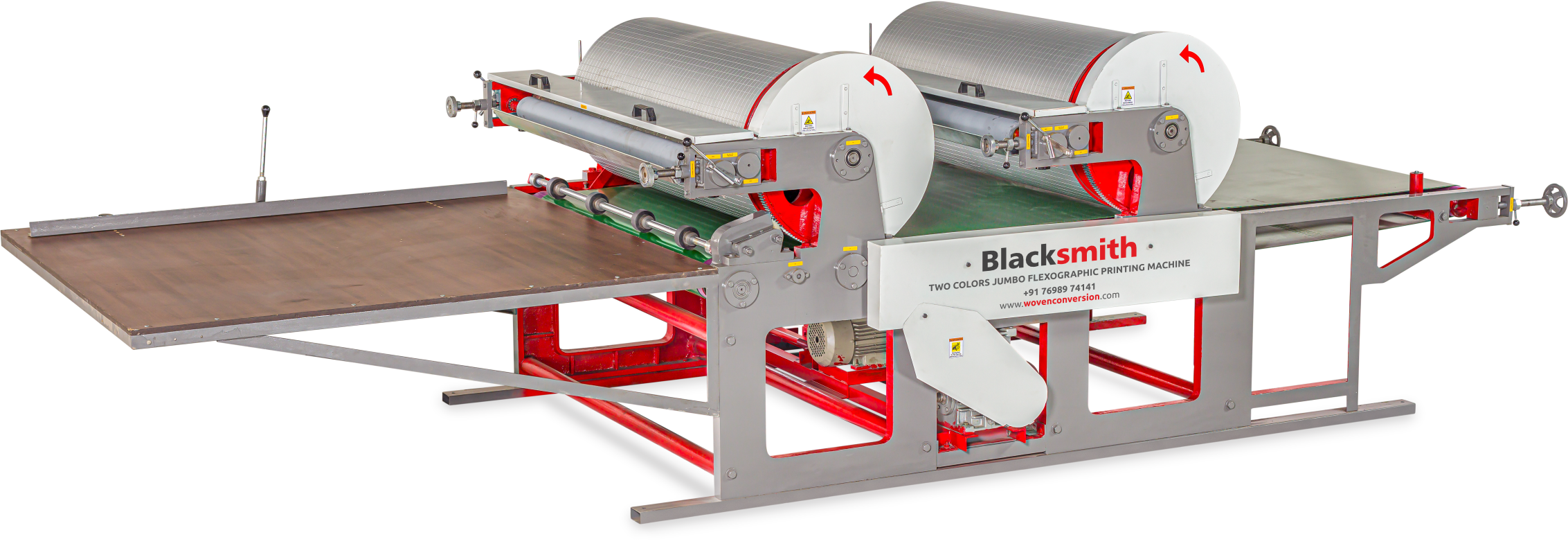

FIBC / Jumbo Bag to Bag Flexo Printing Machine


We designs and manufactures a range up to 4 Colors Printing for PP / HDPE Woven Sack Bags, FIBC Panel & Jumbo Bags.

FEATURES

  • Compact and sturdy construction
  • Easy to maintain and economical
  • The machine is entirely based on ball bearings for high performance
  • Pressure release device avoids unnecessary tinting of conveyor belts
  • Anilox roll saves consumption of printing ink by 30% and gives better printing clarity

ADDITIONAL EQUIPMENTS

  • Stopper Attachment, Bag Gripper, Ink Drying Heater, Bag Counter Meter, Shaft Driven or Chain Driven.

TECHNICAL SPECIFICATIONS

Bag Size in Inches Print Area in Inches Connecting Load (1 Color) Dimension In Feet (1 Color) Connecting Load (2 Color) Dimension In Feet (2 Color) Connecting Load (3 Color) Dimension In Feet (3 Color) Connecting Load (4 Color) Dimension In Feet (4 Color)
52 x 72 50 x 70 2 HP 13.6 x 7 x 5 3 HP 17.6 x 7 x 5 3 HP 21.6 x 7 x 5 5 HP 25.6 x 7 x 5
52 x 85 50 x 83 2 HP 14.6 x 7 x 5 3 HP 18.6 x 7 x 5 3 HP 22.6 x 7 x 5 5 HP 26.6 x 7 x 5
52 x 90 50 x 88 2 HP 15.6 x 7 x 5.6 3 HP 19.6 x 7 x 5.6 3 HP 23.6 x 7 x 5.6 5 HP 27.6 x 7 x 5.6
52 x 110 50 x 108 2 HP 16.6 x 7 x 6 3 HP 20.6 x 7 x 6 3 HP 24.6 x 7 x 6 5 HP 28.6 x 7 x 6

(*Depends upon the Length of the Substrate & Operator Proficiency)
