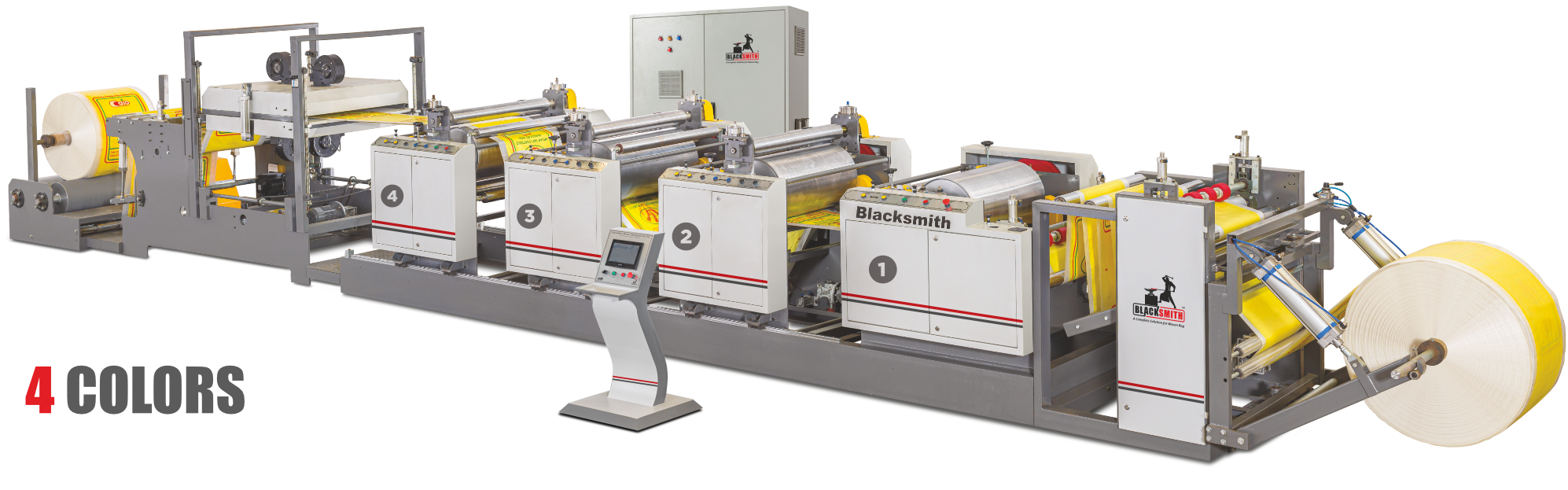

Four Colors Roll-to-Roll Flexographic Printing Machine

Four Colors Roll to Roll Flexographic Printing Machine Without Cylinder Change

FEATURES

Flexographic Roll to Roll Bag Printing machine is Heavy duty machine, designed speciﬁcally to serve to the needs of Woven Sack Manufacturers Globally. This machine is also most suited for producing virtually all types of Woven Sack made globally. This machine oﬀers unmatched mastery in every operation. Time tested, maintenance free and operator friendly. Works smoothly with all virtually all varieties of woven fabrics . Easy to install.

Fabric Width : 34 inch Maximum
Printing Width : 32 inch Maximum
Print Area : 300 mm Minimum & 1200 mm Maximum
Bag Size : 300mm to 4500 mm
Repeat Length (Max) : 1200 mm (As per client’s Requirement)
Stereo Thickness : Minimum 3mm
Photopolymer Plate :Maximum 8mm

APPLICATIONS

One Side Pre Printed BOPP Bag | Fertilizer Bags | Cement / Sugar Bags | All PP / HDPE Bags Laminated & Unlaminated fabric.

TECHNICAL SPECIFICATIONS

Type	Speed	Printing Possibility	Connected Load	Dimension (LWH)
2 Colors	60 mtr/min	2+0, 1+1	16 HP / 12 kW	27 x 6 x 5 (Ft.)
3 Colors	60 mtr/min	3+0, 2+1	18 HP / 13.5 kW	32 x 6 x 5 (Ft.)
4 Colors	60 mtr/min	4+0, 3+1, 2+2	20 HP / 15 kW	40 x 6 x 5 (Ft.)
6 Colors	60 mtr/min	6+0, 5+1, 4+2, 3+3	25 HP / 18 kW	50 x 6 x 5 (Ft.)
8 Colors	60 mtr/min	8+0, 7+1, 6+2, 5+3, 4+4	30 HP / 21 kW	60 x 6 x 5 (Ft.)
