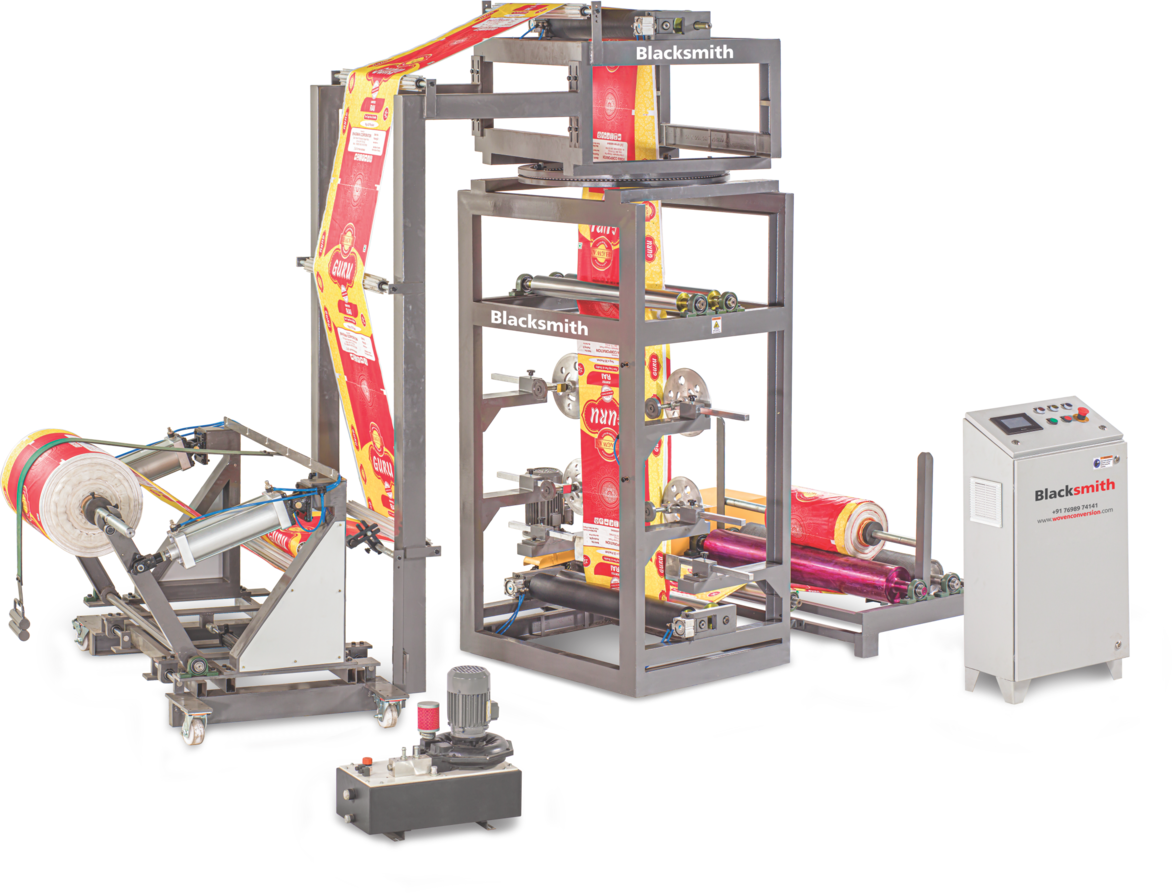

Roll To Roll Twist Gusset Machine


Features

  • Three Motor System
  • Easy Operation
  • Web Aligner
  • Online Cold Perforation Station
  • Accurate Gusseting
  • Universal Gusset Box
  • Tension Controller

Optional Device

  • Online Cold Perforation Station

TECHNICAL SPECIFICATIONS

Model TGM 32” TGM 42”
Speed 65 Meters/Min* 50 Meters/Min*
Width 12” to 32” 12” to 42”
Gusset Depth 1” to 4” Each Side 1” to 4” Each Side
Connected Load 3.5 Kw 3.5 Kw
Dimension (LWH) 13 x 5 x10 (Ft.) 13 x 7 x 10 (Ft.)
(*Depends upon the GSM, Length & Material of the Substrate)
